You’ve noticed it. That distinct chill emanating from the boiler cupboard, especially on a frosty morning. It’s more than just a nuisance; it’s a sign your heating system is fighting an uphill battle against the elements. This cold air draft isn’t just making the surrounding area uncomfortableit’s actively undermining your boiler’s efficiency and costing you money. Sealing these gaps is a straightforward, high-impact DIY task that pays dividends in warmth and savings.
Think of your boiler cupboard as a critical part of your home’s thermal envelope. When cold air seeps in, it forces the boiler to work harder to maintain temperature, leading directly to heat loss and higher energy consumption. The goal isn’t to create an airtight tombproper ventilation is non-negotiable for safetybut to strategically block unwanted airflow. For a comprehensive solution, many professionals recommend using a Boiler Insulation Kit, which bundles the right materials for the job.
Identifying Sources of Cold Air Drafts
Before you reach for the sealant, play detective. The key is to locate exactly where the cold is invading. On a windy day, use your hand to feel for drafts around the entire cupboard. A lit incense stick can also reveal subtle air currents you might miss.
Common culprits are almost always found at the perimeter and entry points. Pay close attention to these areas:
- The cupboard door: Gaps around the edges and at the bottom are prime entry points for cold air.
- Pipe and cable entry points: Where pipes, condensate drains, and electrical cables penetrate the wall or floor into the cupboard. These are often the biggest offenders.
- Wall and floor joints: The seams where the cupboard meets the wall or floor, especially in older homes.
- Ventilation bricks or grilles: While some are essential, they can be oversized or poorly fitted.
Pinpointing these spots is the first step toward targeted, effective action. If your whole house feels chilly despite the heating being on, these boiler cupboard drafts could be a significant contributor.
Essential Safety Considerations First
This is paramount. A boiler is a gas appliance, and its safe operation depends on adequate ventilation. Never, ever block designated air vents or flues. These are there to prevent the dangerous buildup of carbon monoxide and ensure complete combustion.
You must also maintain clearances as specified by the manufacturer. Check your boiler’s manual for the required space around the unit. Insulation or sealing materials should never touch the boiler casing, flue, or any hot pipes. Compromising these clearances is a serious fire risk.
For gas boilers, always consult the official source for safety guidelines. If you’re in any doubt, hire a Gas Safe registered engineer. It’s not worth the risk.
Ventilation vs. Draughts: Knowing the Difference
This is the critical nuance. Ventilation is intentional, measured, and life-saving. A draught is uncontrolled, wasteful, and cold. Your job is to eliminate the latter while preserving the former. Look for manufacturer labels indicating required vent sizes, and never seal them. If you’re unsure, a professional can assess your specific setup.
Choosing the Right Sealing Materials
Not all gaps are created equal, and neither are sealing products. Using the wrong material can be ineffective or unsafe. Your choices hinge on the gap size, location, and whether it’s a permanent or movable joint.
For the door perimeter, adhesive-backed foam or rubber draft excluder tape is ideal. It compresses to form a seal when the door closes. For the bottom of the door, a brush-style or automatic drop-down seal works wonders. Larger gaps around pipes require a more robust solution. Expanding foam is excellent for filling deep cavities in wall penetrations, but apply it sparingly. For a neater, removable job, consider silicone sealant or specialist pipe collars.
When insulating the cupboard walls (not the boiler itself), rigid insulation boards or reflective foil can boost thermal efficiency heating. Remember, the aim is to insulate the space, not the appliance. For a quick and effective solution, a pre-configured Boiler Insulation Kit often includes a selection of these key items.
| Material | Best For | Safety Note |
|---|---|---|
| Self-adhesive Foam Tape | Sealing gaps around door frames | Keep away from boiler flue and hot surfaces. |
| Silicone Sealant | Small, static gaps around pipe entries | Heat-resistant variants are available. |
| Expanding Foam | Large wall cavities around pipes | Use minimal, low-expansion foam. Never near flues. |
| Intumescent strips | Door seals in fire compartment areas | Expands with heat to seal gaps, slowing fire spread. |
| Pipe Lagging | Insulating hot water pipes within the cupboard | Reduces heat loss from pipes, improving system efficiency. |
Check building regulations; often required for cupboards opening onto a hallway.
Step-by-Step Sealing & Insulation Guide
Ready to tackle the project? Follow this logical sequence to stop draughts boiler issues effectively and safely. Gather your materials: sealant, insulation, a utility knife, and a cloth for cleaning.
1. Preparation is Key
Turn off the boiler and let it cool completely. Clear the cupboard of any stored items. Thoroughly clean and dry all surfaces you’ll be working ondust and grease prevent proper adhesion. This is also the perfect time to give the boiler a visual check for any obvious issues.
2. Seal the Pipe Entry Points
This is where you’ll likely make the biggest impact on cold air draft. For small gaps around pipes, apply a bead of silicone sealant. For larger holes, use expanding foam. Let it cure fully, then trim any excess flush with the wall. Don’t forget pipe lagging on accessible hot water pipes inside the cupboardit’s a simple upgrade for energy bill reduction.
3. Weatherstrip the Cupboard Door

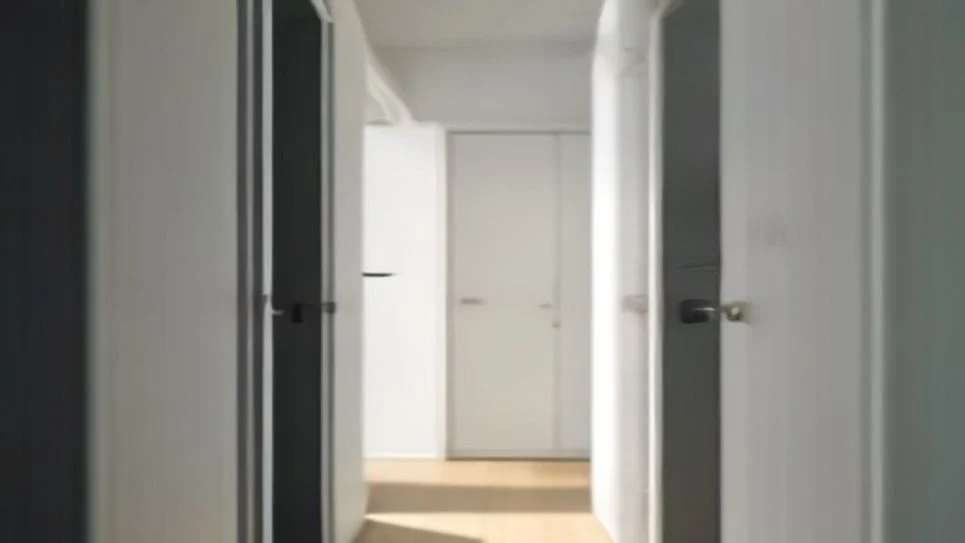

Measure and cut your chosen draft excluder tape. Peel and stick it to the door frame, ensuring a continuous seal. For the door bottom, attach a brush or threshold seal. Close the door to test the compression. You should feel resistance, not see light.
4. Insulate the Compartment Walls (If Appropriate)
If your cupboard is on an external wall, adding insulation to the back and side walls can significantly reduce heat loss. Cut rigid insulation board to size and secure it in place, ensuring a maintain clearances rule from the boiler is strictly observed. This step transforms the space into a more thermally stable environment.
5. The Final Safety Check
Once everything is dry and set, do a final inspection. Verify all vital vents and flues are completely unobstructed. Double-check that no sealing material is touching the boiler. Only then should you turn the system back on and listen for normal operation.
Maintenance and Efficiency Monitoring
Your work isn’t a one-and-done deal. Periodically check the seals, especially the foam tape, for wear and compression. Reapply sealant if you notice new cracks or gaps developing. This proactive approach ensures long-term condensation prevention and sustained efficiency.
How do you know it’s working? Monitor your heating system’s performance. Does it reach temperature faster? Do you notice fewer cold spots in adjacent rooms? Most importantly, keep an eye on your next few energy bills. While many factors affect consumption, effective draught-proofing should contribute to noticeable energy bill reduction. Pair this with other smart upgrades, like choosing the best thermal fabric for your windows, to create a comprehensive strategy against the cold.
Blocking cold air around your boiler cupboard is a classic example of a small fix with a major payoff. You enhance comfort, protect your boiler from unnecessary strain, and take direct control of your energy spending. Its a practical win for your home and your wallet. Just remember: safety and ventilation guide every single step.
