Old, warped window frames are more than just a character quirk in a vintage home. They’re a direct line for drafts, a source of frustrating air sealing challenges, and a major culprit behind high energy bills. That charming imperfection is likely costing you comfort and cash every single day.
You’re not alone in this battle against the elements. The good news is that insulating these problematic frames is a highly effective DIY project. With the right approach, you can dramatically reduce window condensation, stop drafts, and improve your home’s overall energy efficiency. It’s about working with what you have to create a tighter, more efficient seal.
The Core Problem: Why Warped Frames Leak
Wood expands and contracts with seasonal humidity changes. Over decades, this movement can cause frames and sashes to twist and bow, creating gaps that no longer close flush. This isn’t just about a little draft; it creates thermal bridging, where the wood itself conducts heat directly outside, and allows significant air leak sealing issues. You’re essentially heating or cooling the great outdoors.
Step 1: Inspect and Assess the Damage
Before you buy any materials, play detective. On a windy day, hold a lit incense stick or a thin piece of tissue near the window’s perimeter. Watch for movement. Feel for drafts with your hand. Your mission is to identify all leak points.
- Check the sash meeting rails: Where the top and bottom sashes meet in the middle is a prime failure point.
- Examine the perimeter: Look for gaps between the moving sash and the fixed frame on all four sides.
- Inspect the frame-to-wall joint: The wooden frame where it meets your interior wall or plaster often cracks and separates.
- Assess the glazing: The old putty holding the glass can dry and fall out, creating tiny leaks.
This assessment directly informs your strategy for window frame repair and insulation. It tells you if you need to focus on the sash, the frame, or both. For new homeowners tackling this, our guide on insulating tips offers a great foundation.
Step 2: Choose Your Insulation & Sealing Methods
For vintage window insulation, you typically combine two tactics: sealing stationary gaps and weatherstripping moving parts. Your choices depend on the gap size and location.
For narrow cracks (less than 1/4 inch) in stationary spotslike where the frame meets the walla high-quality, paintable acrylic latex or silicone caulk is perfect. The process of caulking windows is simple but transformative.
For larger gaps (1/4 inch to 1 inch) in stationary areas, use a backer rod. This is a foam rope you press into the gap before caulking. It provides a stable base for the caulk, prevents three-sided adhesion (which leads to failure), and saves material.
For gaps around moving sashes, you need weatherstripping. This is the heart of window seal repair for operable parts. For warped wooden frames, V-seal (or tension seal) weatherstripping is often the best choice. It’s a springy metal or plastic strip that compresses as the window closes, conforming to minor irregularities. For this project, many professionals recommend using the Frost King V739H V-Seal weatherstrip. Its durable bronze finish and brass-plated steel spring offer an effective balance of flexibility and longevity for reducing heat loss through old sashes.
Step 3: The Sealing & Insulation Process
Now, let’s get to work. This is your hands-on guide for how to seal gaps in old window sashes and frames.
Preparation is Key
Clean all surfaces thoroughly. Remove old, brittle caulk and peeling paint with a putty knife and scraper. For window seal repair, adhesion is everything. A clean, dry surface is non-negotiable. Lightly sand areas where you’ll apply new caulk or adhesive-backed weatherstrip.
Seal Stationary Gaps
- Install backer rod: For any large gap, press the foam rope in until it’s about 1/4 inch below the surface. This creates the perfect cavity for caulk.

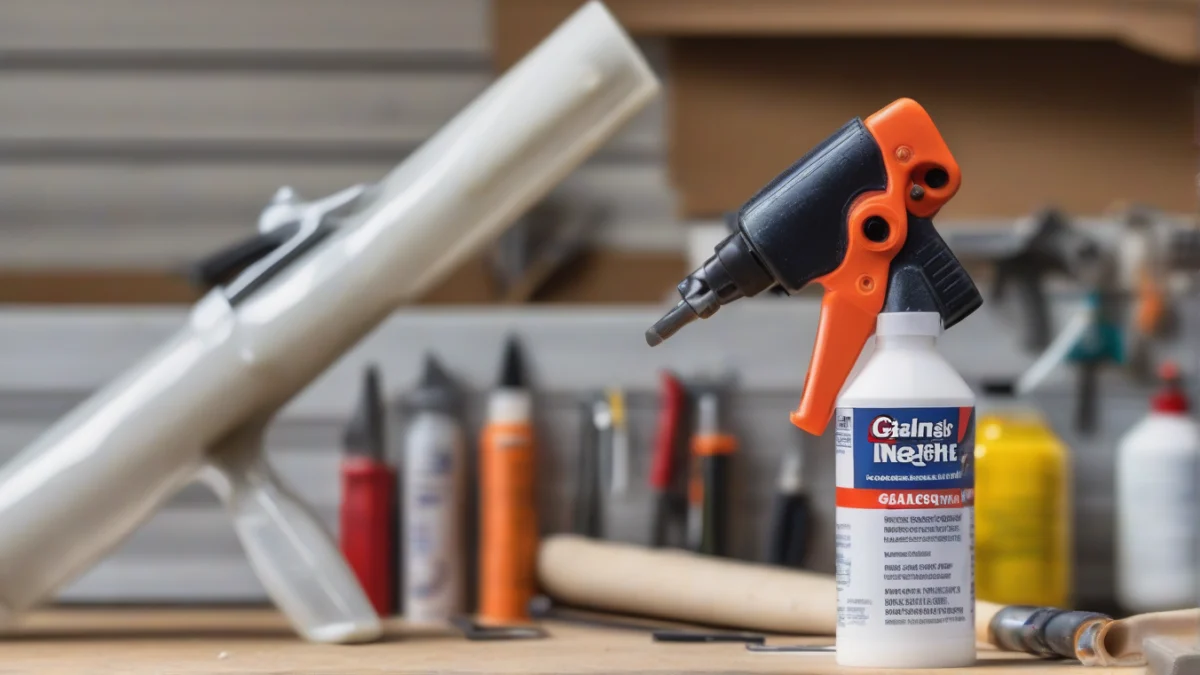

- Apply caulk: Load your caulk gun, cut the tip at a 45-degree angle, and apply a steady, continuous bead. Smooth it immediately with a damp finger or a caulking tool for a clean, concave finish.
This step alone can solve many drafty windows problems originating from the fixed frame.
Weatherstrip the Moving Sashes
This addresses the best insulation for warped wooden window frames where they move. Measure the perimeter of the sash (the part that moves) where it contacts the frame.
- Cut your V-seal weatherstrip to length.
- Starting at the top, press it into the groove on the sash or attach it to the surface so the “V” opens toward the direction of close. The closing action compresses the V, creating the seal.
- Work your way around all four sides. Test the window’s operation frequentlyit should close snugly but not require excessive force.
The Interior Storm Window Option
For severely warped windows where weatherstripping isn’t enough, consider an interior storm panel. It creates a dead air spacea fantastic insulatorand stops drafts completely. It’s a more involved solution but incredibly effective for the worst cases.
When to Call a Professional & Long-Term Solutions
So, when does DIY end? Consider the cost to insulate 100 year old windows professionally versus doing it yourself. If the wood is rotted, the frame is structurally unsound, or the sashes are painted shut and you risk breaking the glass, call a pro. A skilled carpenter can often repair and epoxy-splice damaged sections, restoring the window’s function.
The debate of DIY vs hiring a pro for window insulation often comes down to the scale of repair needed versus simple sealing. Professionals bring expertise in historic restoration that can preserve value while improving efficiency.
Maintenance & Prevention
Your work isn’t done after the last bead of caulk dries. Maintaining old house windows is an ongoing task. Inspect seals and weatherstripping annually. Repaint exterior wood regularly to protect it from moisture, the primary cause of warping. Consider using a dehumidifier in very damp climates to minimize seasonal wood movement.
Remember, sealing drafty windows is part of a whole-house approach to energy efficiency. For more strategies on managing airflow, learn how to prevent warm air from escaping through other avenues in your home. The official energy guide from the U.S. Department of Energy is also an excellent resource for broader context.
A Warmer, Quieter Home Awaits
Insulating old, warped window frames is a satisfying project with immediate rewards. You’ll feel the difference on the next windy night. You’ll see the difference on your next energy bill. It’s a direct investment in your home’s comfort, efficiency, and preservation. Start with one window. Master the process. Then take on the rest, knowing you’re not just stopping a draftyou’re honoring the history of your home while making it work for modern life.
