How to Seal Cold Air Gaps Under Bay Windows

Cold air gaps under bay windows can make your home uncomfortable and lead to higher energy bills. Sealing these gaps is a manageable DIY task that can provide immediate benefits.

How to Seal Cold Air Gaps Under Bay Windows

To seal cold air gaps under bay windows, start by locating the leaks and then apply appropriate sealants like caulk and weather stripping to block drafts. This straightforward repair stops cold air from entering and improves your home’s comfort and energy use.

Cold air gaps under bay windows usually occur where the window frame meets the wall, between the window sills and the baseboard, and in any cracks in the bay’s structural joints. These spots let cold air inside, causing drafts and heat loss.

Using the right sealing materials is crucial. Caulk works best for small cracks and gaps under 1/4 inch wide. For larger gaps or movable parts, weather stripping or foam sealant is more effective because it compresses and holds tight.

1. Gather your materials

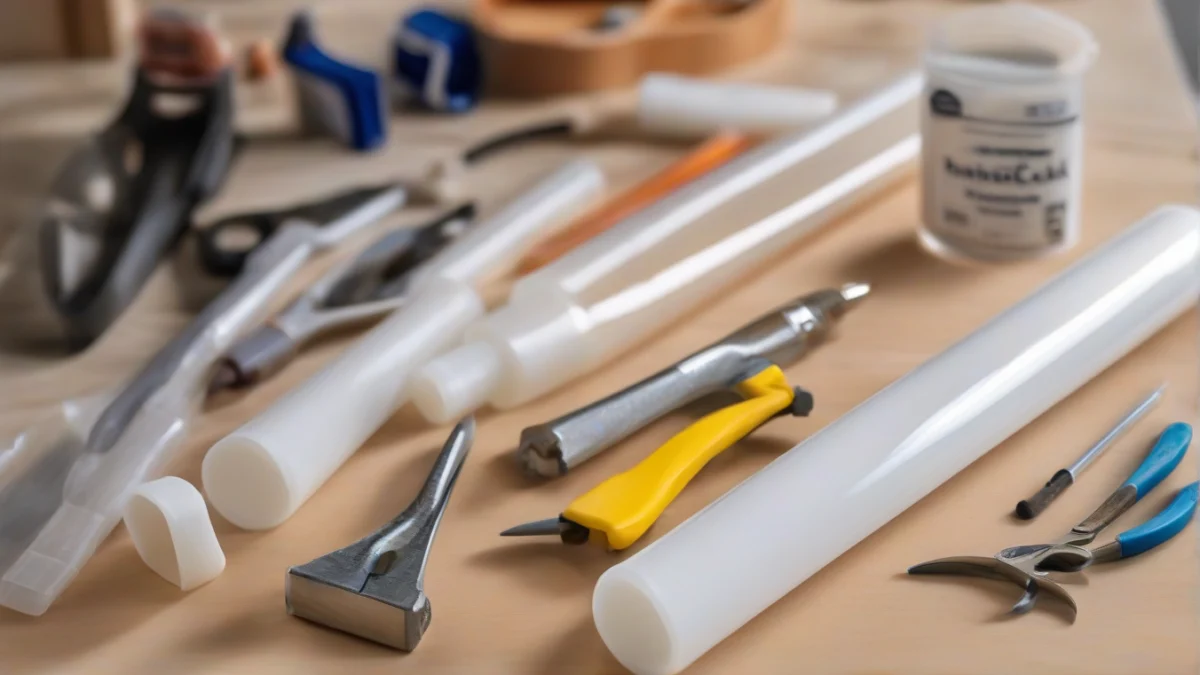

   Get a high-quality exterior-grade silicone or acrylic latex caulk, a caulk gun, foam backer rod for large gaps, weather stripping if needed, a putty knife, and a utility knife.
2. Clean the area
   Remove dust, dirt, and old paint from the gaps and surrounding surfaces. Use a brush or vacuum to ensure good adhesion for the sealant.
3. Inspect and measure gaps
   Check all potential leak points under the bay window. Use a measuring tape or ruler to note gap widths; this helps decide whether to use caulk, foam rod, or weather stripping.
4. Prepare large gaps
   If gaps are wider than 1/4 inch, push foam backer rod into the space before caulking. The rod fills the bulk and allows the caulk to seal the surface properly.
5. Apply caulk
   Cut the caulk tube nozzle at a 45-degree angle to match the gap size. Squeeze caulk steadily along the crack, smoothing it with a putty knife or your finger for an even seal.
6. Install weather stripping if needed
   For movable parts or gaps between the window frame and sash, apply adhesive-backed weather stripping. Press firmly to secure it and check that windows still open smoothly.
7. Let the sealant cure
   Allow the caulk or foam to dry completely before exposing it to moisture or painting. Follow the manufacturer’s curing time, usually 24 hours.

What You Need

Gather essential materials for the sealing process.

Window & AC Sealing

ECOHomes Window Weather Sealing Tape 2″ Clear

This tape has a strong adhesive that blocks drafts, moisture, and dust effectively. It removes cleanly without residue, protecting paint and wood surfaces during seasonal changes.

Check price on Amazon

AC & Window Gaps

XFasten Window Weather Sealing Tape 2″ Clear

This tape is thicker (8.7 mil) and flexible to fit tight spaces and curves without bulk. It holds firmly year-round and peels off cleanly without sticky residue or damage to paint or wood.

Check price on Amazon

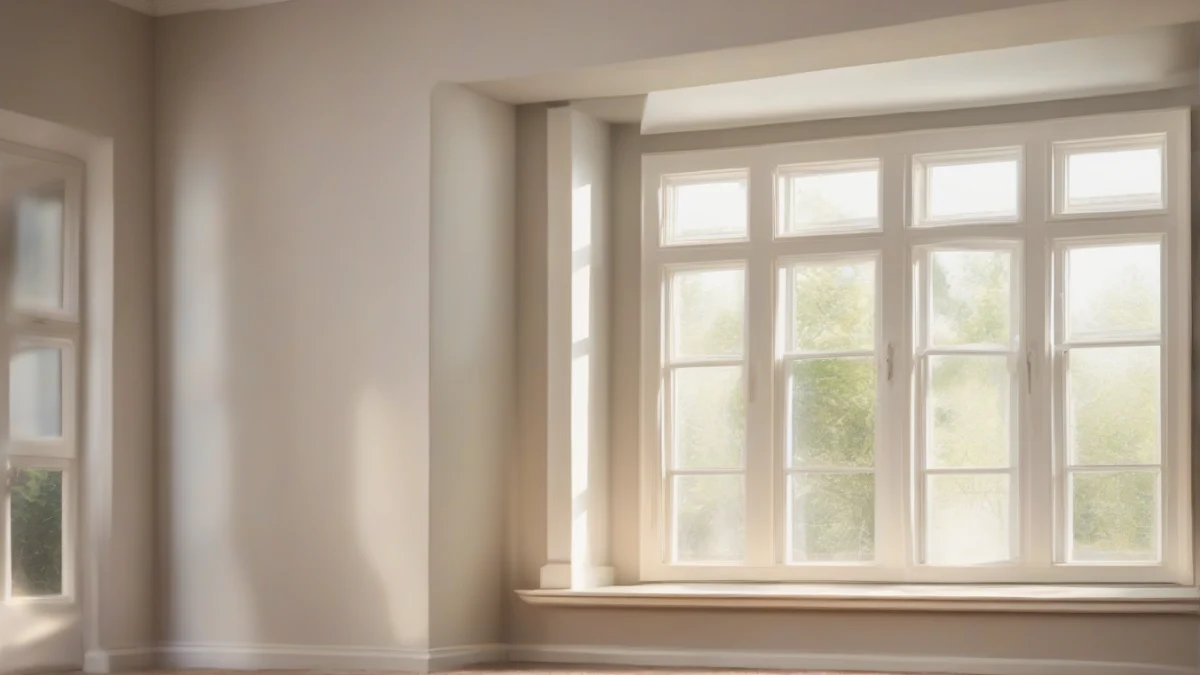

Identifying Air Gaps in Your Bay Window

Cold air gaps under bay windows often occur where the window frame meets the wall, at the joints between window panels, and around the window sill. These spots allow drafts to enter, lowering indoor comfort and raising heating costs.

To find air gaps, start with a visual inspection. Look for cracks, gaps, or deteriorated sealant along the frame and sill. Check for any gaps between the window and the wall or the trim.

Next, test for drafts by holding a lit incense stick or a thin strip of tissue near the suspected areas. If the smoke wavers or the tissue moves, you have located a leak. This method works well in calm conditions and highlights even small leaks.

Another effective way is to feel with your hand for cold air while the heating runs. Slowly move your hand around the entire bay window perimeter, focusing on corners and seams. Cold spots often indicate leaks.

On windy days, you can also listen closely for whistling or hissing sounds near the window edges. These noises often come from air moving through gaps.

1. Visual Check
   Examine the window frame, sill, and joints for visible cracks or gaps.
2. Smoke or Tissue Test
   Hold a lit incense stick or tissue near edges to detect moving air.
3. Hand Feel
   Run your hand around the window perimeter to sense cold drafts.
4. Sound Detection
   Listen for whistling or hissing on windy days near window seams.

Identifying leaks under bay windows is a practical first step before sealing. Once you know exactly where cold air enters, you can choose the right materials and methods to close those gaps effectively. For sealing techniques, see How to Seal Cold Air Gaps at Skirting Boards and How to Seal Gaps Around Old Window Frames.

Choosing the Right Materials for Sealing

The best materials for sealing cold air gaps under bay windows depend on the size and location of the gaps. Small cracks under 1/4 inch wide usually seal well with acrylic latex caulk. Larger gaps up to 3/4 inch require foam backer rod before caulking. For bigger gaps, expanding spray foam is effective but must be trimmed flush once dry.

Caulk forms a flexible, airtight seal that resists moisture and shrinking. Choose a caulk labeled for exterior and interior use with good adhesion to wood, metal and masonry. Silicone caulk lasts longer but is harder to paint. Acrylic latex is easier to clean and paint over.

Weather stripping works well on movable joints or sash edges where the window opens. Foam tape, V-strip or felt weather stripping can compress to block drafts and allow window movement. Use weather stripping in combination with caulk for best results.

Rigid materials like plywood or insulation board can fill large gaps inside window frames before applying sealants. A combination of backer rod, caulk and weather stripping addresses different gap types and locations for a thorough seal.

1. Assess the gap size and location
   Measure the width and depth of air gaps under and around the bay window. Note if the gap is between stationary parts or movable sashes.
2. Select materials accordingly
   Use caulk for small cracks, backer rod plus caulk for medium gaps, and expanding foam for large gaps. Add weather stripping on movable joints.
3. Combine for best coverage
   Fill large cavities with rigid insulation or backer rod first. Then seal surfaces with caulk. Install weather stripping on window sashes or joints to block drafts while allowing movement.

When to Call a Professional for Bay Window Issues

Hire a window contractor if the gaps are unusually large, the window frame is rotting, or you see water damage inside the wall. These signs indicate structural or moisture problems beyond simple sealing.

If the window does not open or close smoothly, or the glass is cracked or fogged between panes, professional repair or replacement is the safer choice. Attempting DIY fixes in these cases can worsen the damage.

A professional can also improve insulation and ventilation around bay windows, which may be necessary for older homes. They will assess the whole window assembly, including flashing and siding, to prevent future leaks.

Consider your own skill level and the tools you have. Simple caulking and weather stripping are easy to learn. Complex repairs, frame replacement or addressing water intrusion require licensed contractors.
