How to Insulate Window Recesses for Better Efficiency

Cold spots around windows indicate energy loss, leading to higher heating costs. Insulating the window recesses, also known as reveals or jambs, is an effective way to tackle this issue.

How to Insulate Window Recesses for Better Efficiency

Insulating window recesses cuts drafts and blocks heat loss through thermal bridging, improving energy efficiency. For single-glazed windows, add insulation inside the recess without harming the wood or wall by sealing gaps, applying insulation foam or panels, and using weatherstripping.

Window recess insulation targets the cavity between the window frame and wall, a common path for heat to escape. Thermal bridging happens when cold transfers through the window frame or masonry, bypassing insulation layers. Insulating this space raises the overall R-value and reduces cold spots.

You will need caulk or expanding foam to seal cracks, rigid foam insulation boards or mineral wool batts sized to fit the recess, weatherstripping tape for sash or operable windows, a utility knife, a caulking gun, measuring tape, gloves, and a putty knife or small trowel.

1. Inspect and Clean
   Check the window recess for air leaks, gaps, and old deteriorated insulation. Remove dust, dirt, and loose paint to ensure good adhesion of sealants and insulation.
2. Seal Gaps and Cracks
   Use acrylic latex caulk for small cracks and expanding foam for larger gaps around the window frame. Apply carefully to avoid expanding foam pushing against the window sash or frame, which could warp or block operation.
3. Cut and Fit Insulation
   Measure the recess depth, height, and width. Cut rigid foam panels or mineral wool batts to fit snugly inside the recess without compressing them, which reduces effectiveness. Leave space around operable window parts.
4. Install Insulation
   Press foam panels firmly into place, or tuck mineral wool carefully to fill the cavity. Avoid blocking window drainage or ventilation channels. For a clean finish, cover exposed edges with trim or paintable caulk.
5. Apply Weatherstripping
   Add weatherstripping tape or V-strip tension seals to the sash or movable parts of the window to reduce air infiltration without damaging the wood or paint. Choose adhesive-backed types that remove cleanly.
6. Final Check
   Open and close the window to confirm it operates smoothly. Check for any new drafts with a thermal imaging camera or a lit incense stick. Touch up any missed gaps with caulk or foam.

For single-glazed windows, insulating the recess is one of the most cost-effective ways to improve thermal resistance. Single panes typically have an R-value around 0.9. Adding foam board insulation with an R-value of 3 to 5 inside the recess can triple the total resistance, reducing heat loss substantially.

Insulating doors and windows without damaging walls or wood means avoiding permanent alterations. Use removable weatherstripping, caulk that peels off cleanly, and insulation panels that fit tightly but can be removed. Avoid nails, screws, or adhesives that soak into wood or plaster.

If you want a temporary or budget option, clear bubble wrap applied with double-sided tape to the inside of the window glass adds a thin insulating air layer. It’s cheap, easy to install, and won’t harm the window or frame.

Follow these steps carefully to improve comfort, reduce drafts, and lower heating bills without costly window replacement or permanent changes to your walls or woodwork.

For related advice on insulating window sills during wall insulation, see window sills during wall insulation and for insulating bedrooms without replacing windows, see insulate a bedroom without replacing windows.

What You Need

Essential materials for insulating window recesses.

Shrink film kit

Frost King Shrink Window Kit 42-62 Inch

This kit uses shrink film to create a tight seal over window recesses, cutting drafts and improving energy efficiency. It is durable and easy to apply but needs annual replacement for best results.

Check price on Amazon

Reusable film kit

Mellroom Cut-to-Size Window Insulation Kit

This kit includes a thick transparent film and adhesive straps that allow easy removal and reuse. It fits most window types except those needing frequent ventilation and can cover large windows by combining two films.

Check price on Amazon

Understanding Materials for Window Recess Insulation

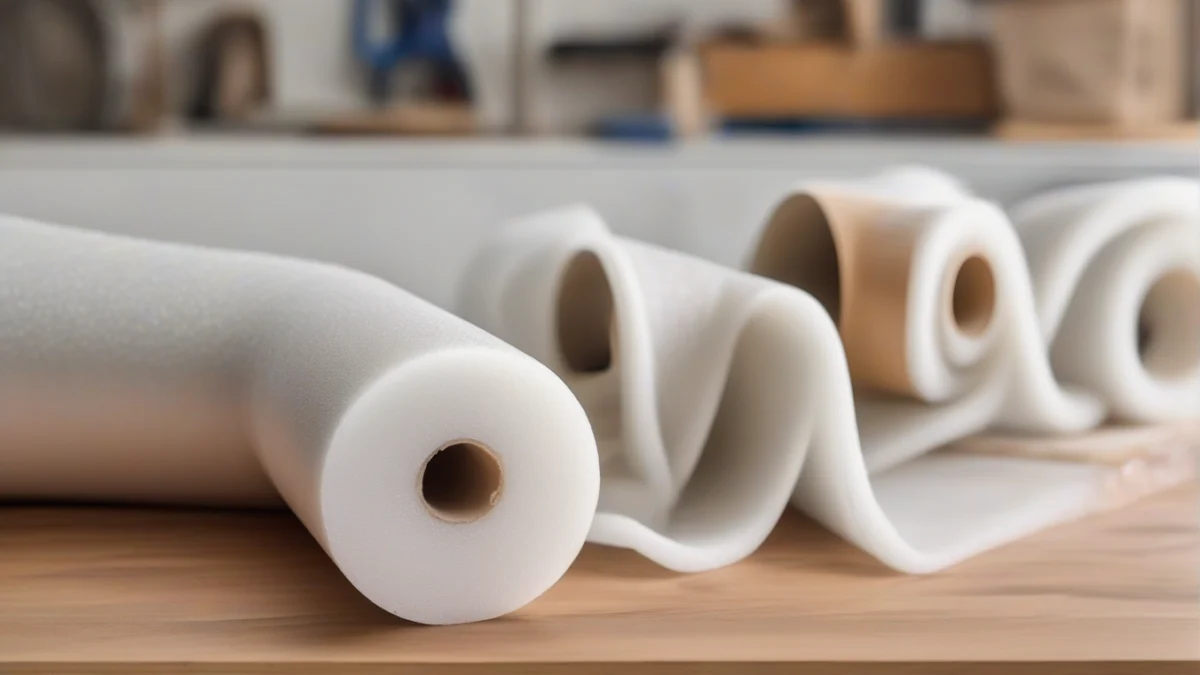

The best fabric to insulate windows from heat is acrylic foam, commonly found in thermal curtains. This fabric blocks radiant heat transfer and adds a layer of air insulation. For a DIY approach, acrylic foam-backed thermal curtains or thick polyester fabrics with insulating layers are the most effective and affordable options.

Window recess insulation requires materials that fit into narrow spaces, resist moisture, and provide a high R-value—the measure of thermal resistance. Common materials include foam board, mineral wool, fiberglass batts, spray foam, and reflective films. Each has different qualities for effectiveness, durability, and cost.

Rigid foam board fits well in deep, straight recesses. It provides a solid, moisture-resistant barrier but requires precise cutting and fitting. Mineral wool is excellent for irregular recesses and offers fire resistance and moisture tolerance, which helps prevent mold in damp areas. Fiberglass batts are the most affordable but must be protected from moisture to maintain effectiveness.

Spray foam seals air leaks and insulates simultaneously. It expands to fill gaps but is a permanent installation and harder to remove or adjust. Reflective film reduces heat gain by reflecting sunlight and works best combined with other insulation methods like thermal curtains.

Fabric options for insulating window recesses include thermal curtains made from acrylic foam or polyester blends. These fabrics add a soft insulating layer that reduces heat transfer and drafts. They are easy to install and remove, making them ideal for renters or temporary solutions.

When choosing materials, consider the depth and shape of the recess, moisture levels, and whether you want a permanent or removable solution. For historic or nonstandard recesses, flexible materials like mineral wool or thermal fabrics avoid damage to fragile window frames.

Most effective insulation combines several materials. For example, rigid foam board inside the recess with thermal curtains over the window adds layers of thermal resistance and helps control condensation by reducing cold surfaces where moisture forms.

DIY insulation fabrics are widely available online or in home stores. Look for curtains labeled “thermal” or “insulating” with acrylic foam backing. They balance cost and performance well and improve comfort by blocking drafts and radiant heat.

Avoid materials that absorb moisture without drying quickly, as trapped dampness leads to mold and frame damage. Always pair porous insulation like fiberglass or mineral wool with a proper vapor barrier or sealant to protect it.

For a quick, budget-friendly option, bubble wrap applied directly to the glass can reduce heat loss by creating trapped air pockets. It is less durable and less visually appealing but effective for short-term insulation, especially in rental units.

Effective window recess insulation improves energy efficiency by reducing heat loss and drafts. It also helps prevent condensation buildup on cold window surfaces, reducing mold risk and protecting window frames.

For more on sealing gaps and stopping drafts, see our guide on weatherstripping and draft stoppers. For insulating historic window recesses without damage, consult draughty sash windows insulation.

Common Issues with Window Recess Insulation

Single-glazed windows lose heat quickly and can cause condensation. You don’t have to replace them to improve insulation. Adding weatherstripping and caulking around the window frame reduces drafts and heat loss effectively.

1. Check for Air Leaks
   Inspect the window recess for gaps using thermal imaging or by feeling for drafts on a cold day.
2. Seal Gaps
   Apply caulk or foam tape around the window sash and frame to create an airtight seal.
3. Add Insulating Layers
   Use thermal curtains with acrylic foam backing or install shrink-fit plastic film over the window to boost insulation without reducing daylight excessively.
4. Prevent Moisture Build-up
   Open windows briefly each day or use a dehumidifier to keep humidity levels low and avoid condensation.

Reduced daylight is a common complaint when insulating window recesses. Avoid heavy or dark fabrics that block light. Choose light-colored thermal curtains or clear window film to maintain brightness while improving insulation.

Bubble wrap is a budget-friendly option for temporary insulation. Apply it with the bubbles facing the glass for better air trapping. It reduces drafts and heat loss but can slightly blur the view and lower visible light.

Draft stoppers along the window sill block cold air entry and warm air escape. They are easy to install and remove and work well with other insulation measures.

For historic windows, avoid permanent changes that damage frames or glass. Use removable solutions like tension-mounted thermal curtains or window inserts designed for preservation.

Cost vs. Benefit of Insulating Window Recesses

Insulating window recesses can cut heating energy loss by up to 30%, lowering energy bills significantly. Materials like caulk, weatherstripping, and thermal curtains have modest upfront costs and fast payback periods.

Single-pane windows have an R-value around 0.9. Adding insulation to the recess can boost overall thermal resistance closer to double-pane levels without replacing the window.

Bubble wrap insulation costs very little but is less durable and less effective than specialized thermal curtains or films. Its payback is immediate if it reduces heating time even slightly.

Historic window recesses benefit from non-invasive methods. Window inserts and tension-mounted curtains cost more but preserve original frames and offer good insulation with a typical payback of 1 to 3 years depending on energy prices.

Investing in window recess insulation usually pays for itself through energy savings in under three years. This is especially true in cold climates or homes with single-pane windows. Using the right materials and installation methods keeps costs low and improves comfort.

When to Seek Professional Help for Window Insulation

Professional help is recommended when window recess insulation involves complex issues such as structural damage, extensive condensation, or historic window frames that require preservation. Attempting to insulate without proper knowledge in these cases can cause moisture buildup or damage to the window assembly.

If you want to insulate a window unit but cannot use foam tape from stores like Home Depot due to surface or material restrictions, a professional can suggest alternative sealants or custom-fit insulation solutions that ensure an airtight seal without risking damage.

1. Assess Your Window Condition
   Look for signs of rot, peeling paint, or persistent condensation that suggest deeper problems.
2. Evaluate Your Skills and Tools
   If you lack experience with caulking, weatherstripping, or applying window film precisely, consider a pro.
3. Find a Qualified Contractor
   Choose someone with experience in window insulation, references, and proper licensing. Confirm they understand local building codes and historic preservation if relevant.
4. Request an Inspection
   A professional inspection can identify hidden air leaks and recommend the best insulation approach for your window recess.

Best Practices for Maintaining Insulated Window Recesses

Insulated window recesses do require some maintenance to keep their effectiveness and prevent moisture problems. Regular checks help catch early signs of damage or condensation that can degrade insulation and window materials.

DIY insulation solutions like weatherstripping and bubble wrap are durable for a season or two but may need replacement or adjustment to maintain a tight seal. Materials exposed to sunlight or temperature swings can lose flexibility or adhesive strength.

1. Inspect for Moisture and Damage
   Look inside the recess for water stains, mold, or peeling caulk at least twice a year, especially after winter.
2. Check Weatherstripping and Seals
   Press along the edges of weatherstripping and foam tape to ensure they are intact and firmly attached.
3. Replace or Repair as Needed
   Remove damaged or brittle insulation materials and reapply new weatherstripping or window film promptly to avoid heat loss.
4. Clean Window Surfaces
   Keep window sashes and recesses clean to prevent dirt buildup that can reduce adhesion of tapes or films.
